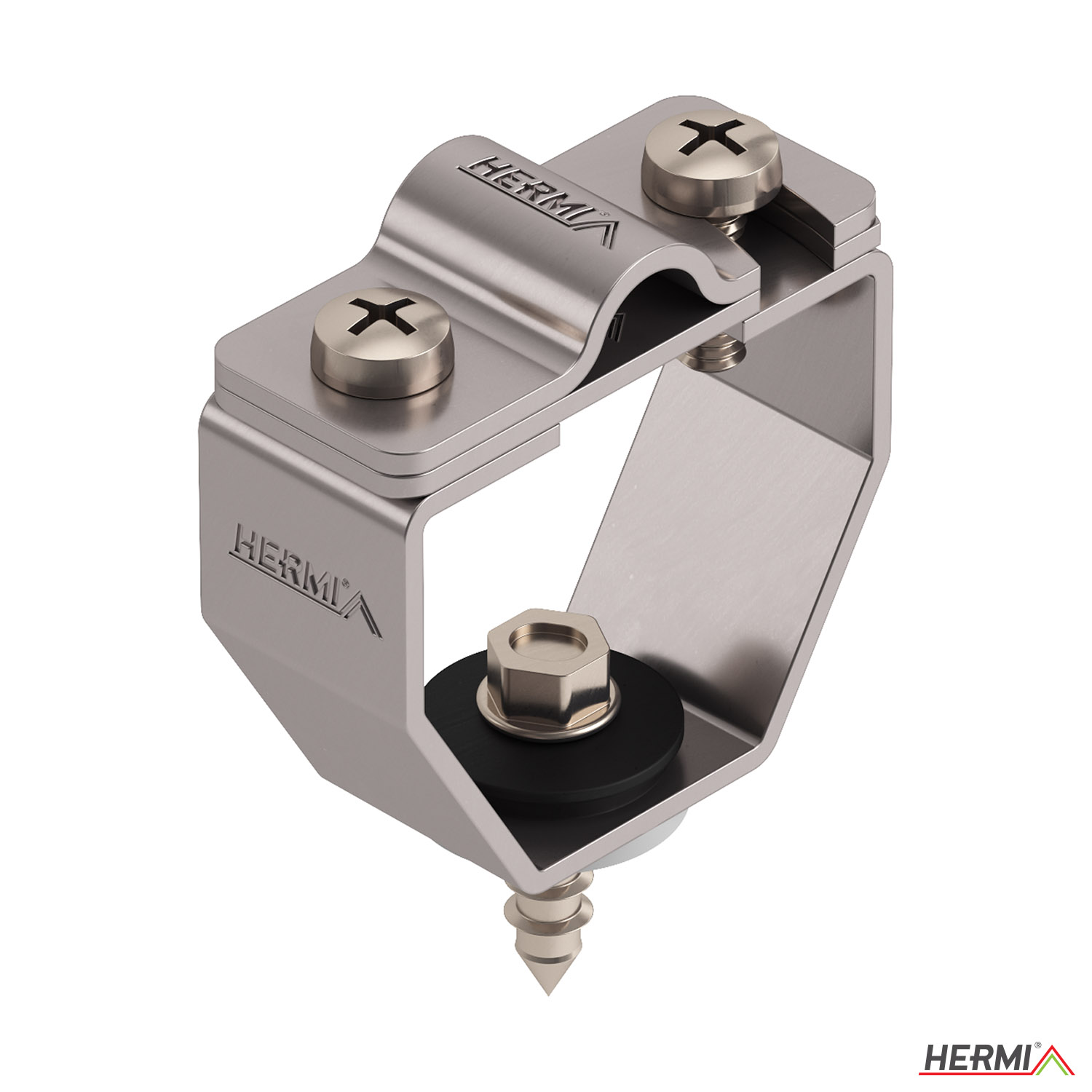

SON16 Rf-V 8-10 mm roof conductor fastener

Code: 11622

SON16 Rf-V 8-10 mm roof conductor fastener

Code: 11622

Roof conductor fastener with a screw and rubber seal is appropriate for METAL SHEET PANEL coverings such as TRIMO and the like, fibrocement roof coverings such as SALONIT VALOVITKA and the like.

TECHNICAL DATA AND STANDARDS

LEGEND

MATERIAL

	LABEL	MATERIAL
	Rf	stainless steel
	Rf*H4	acid-resistant stainless steel
	Cu	copper
	Al	aluminium
	Fe	steel
	FeZn	galvanized steel
	FeZn-H	hot-dip galvanized sheet metal
	KFe	polypropylen
	FeCu	copper coated steel
	Me	brass
	PE	polyetilen - UV resistant
	N	nylon – UV resistant
	P-SV	polyester with UV resistant glass fibres
	pvc	electrostatic plastic-coated
	PVC	resistant synthetic material
	Wood	wood
	Concrete	concrete
	Ltž	cast iron
	CuSn	tinned copper
	PP	polypropylen

CONDUCTOR DIMENSIONS

(appropriateness of holders for a certain profile of conductors)

LABEL	DESCRIPTION
Φ	round cross-section conductor
P	rectangular cross-section conductor

CONDUCTOR ATTACHMENT ON FASTENER

LABEL	DESCRIPTION
N	attachment with nylon attachment elements
PE	attachment with polyetilen attachment elements
K	click attachment system
V	screw attachment
*	upon request

Labels legend

Become our partner

Our customers have access to more than 30.000 products

Roof conductor fastener with a screw and rubber seal is appropriate for METAL SHEET PANEL coverings such as TRIMO and the like, fibrocement roof coverings such as SALONIT VALOVITKA and the like.

Application	Metal roof
Mounting method	Screwable
Mounting type conductor	With screw clamp
Length carrier	48 mm
Conductor diameter	8-10 mm
Material of holder	Stainless steel 304 (V2A)
Material of carrier	Stainless steel 304 (V2A)
Assembly height conductor holder	40 mm
