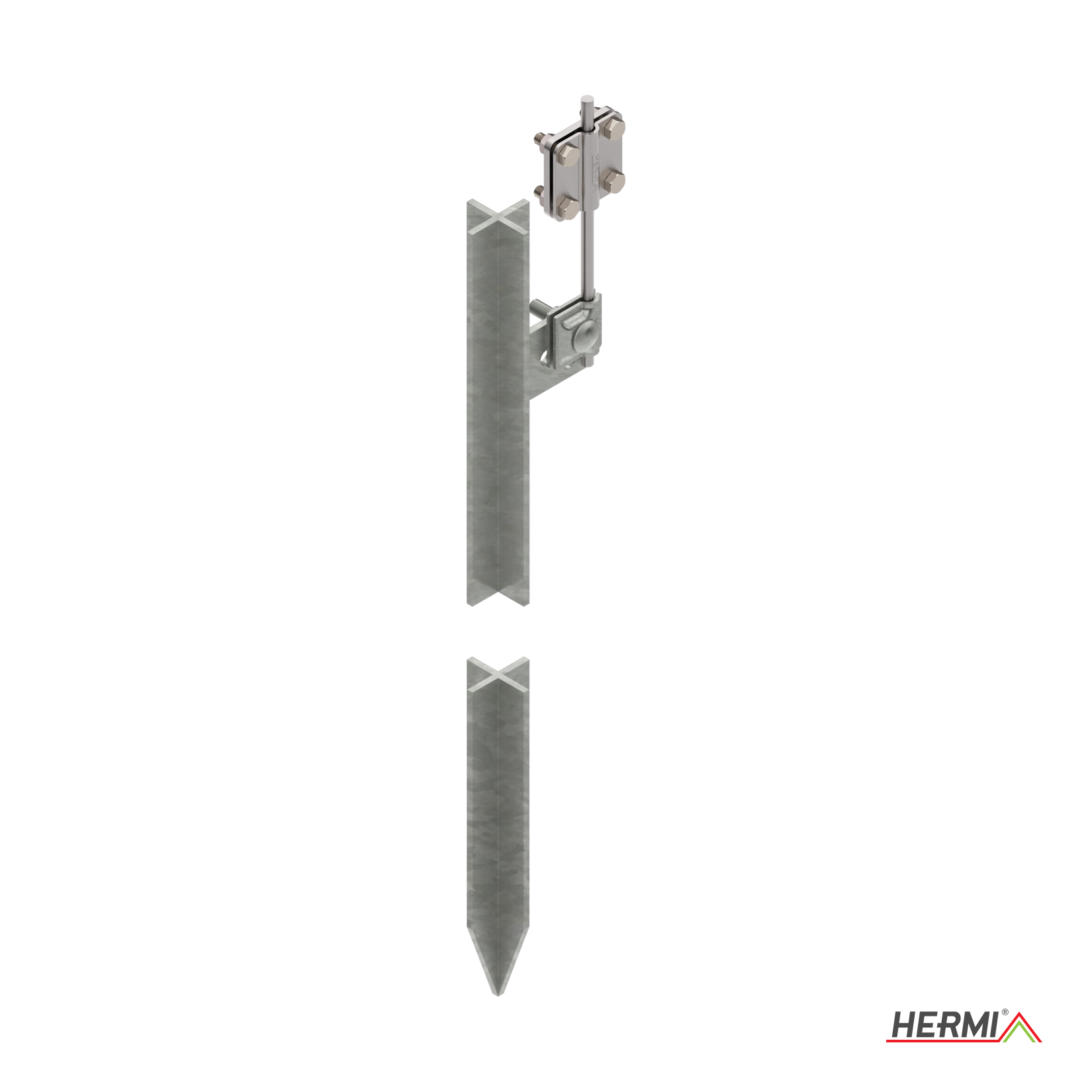

POS earthing rod+clamp FeZn-H 50x50/5x2000 mm

Code: 90706

POS earthing rod+clamp FeZn-H 50x50/5x2000 mm

Code: 90706

POS FeZn earth rod made of hot galvanized steel with cross-section dimensions 50 mm x 50 mm x 5 mm, together with a connecting clamp for tape conductor up to 30 mm width, to install rod earthings and reconstruction of damaged earthings.
Weight: 6.50

TECHNICAL DATA AND STANDARDS

LEGEND

MATERIAL


LABEL
MATERIAL
Rf
stainless steel
Rf*H4
acid-resistant stainless steel
Cu
copper
Al
aluminium
Fe
steel
FeZn
galvanized steel
FeZn-H
hot-dip galvanized sheet metal
KFe
polypropylen
FeCu
copper coated steel
Me
brass
PE
polyetilen - UV resistant
N
nylon – UV resistant
P-SV
polyester with UV resistant glass fibres
pvc
electrostatic plastic-coated
PVC
resistant synthetic material
Wood
wood
Concrete
concrete
Ltž
cast iron
CuSn
tinned copper
PP
polypropylen

CONDUCTOR DIMENSIONS

(appropriateness of holders for a certain profile of conductors)

LABEL
DESCRIPTION
Φ

round cross-section conductor

P

rectangular cross-section conductor


CONDUCTOR ATTACHMENT ON FASTENER

LABEL

DESCRIPTION

N

attachment with nylon attachment elements

PE

attachment with polyetilen attachment elements

K
click attachment system
V
screw attachment
*
upon request
Labels legend
POS FeZn earth rod made of hot galvanized steel with cross-section dimensions 50 mm x 50 mm x 5 mm, together with a connecting clamp for tape conductor up to 30 mm width, to install rod earthings and reconstruction of damaged earthings.
Material Steel
Model With steel strip
Diameter 50 mm
90706_POS_FeZn-H_Earth_rod_2000_TECHNICAL_DATA_SHEET.pdf
ISO9001_&_ISO14001_en.pdf
