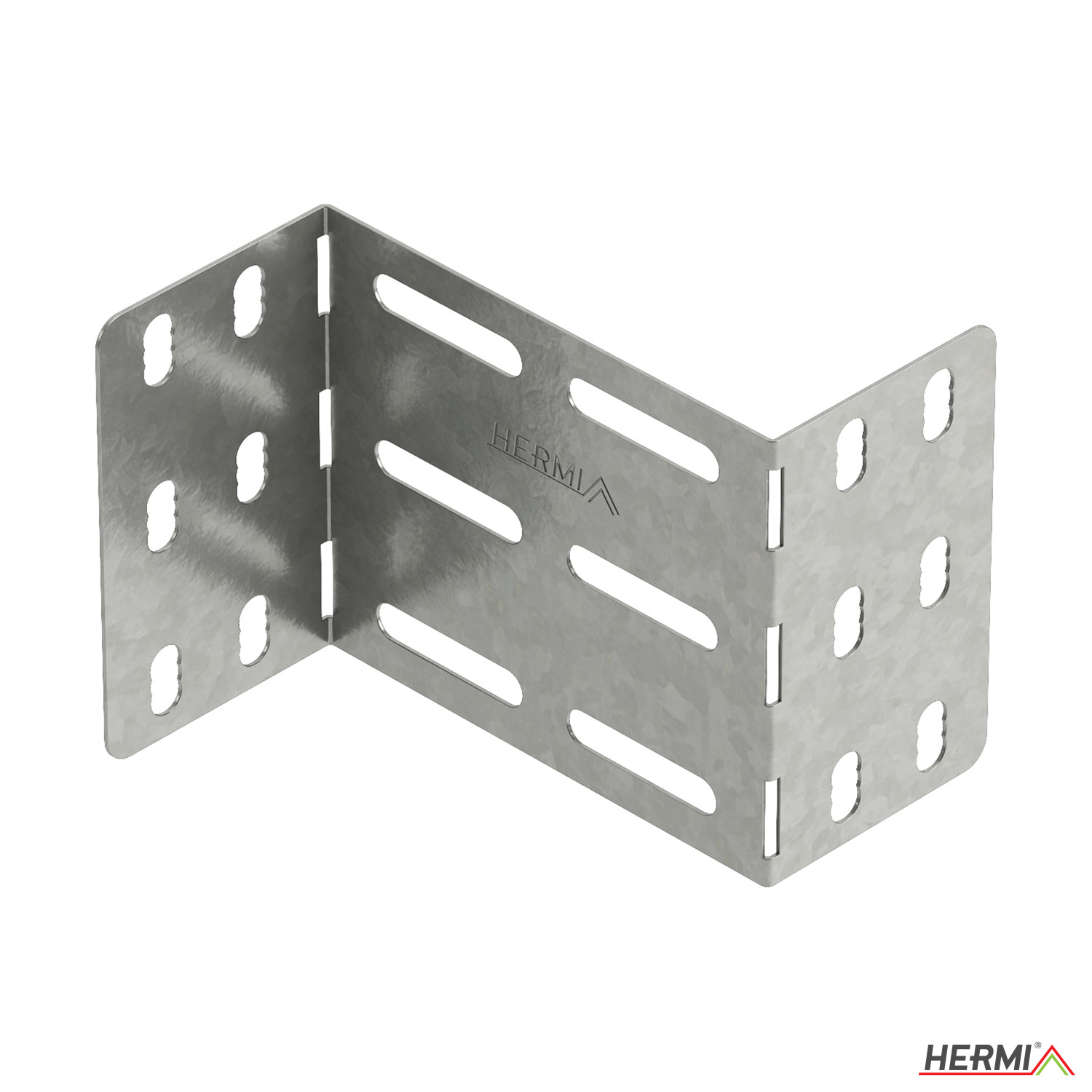

With ZRE - 100/AB/100 eduction element we reduce the width for A/B (mm) = 100 mm (e.g. from cable tray of 200 mm of width to 100 mm). With ZRE - 100/AB/200 reduction element we reduce the width for 200 mm (e.g. from cable tray of 500 mm of width to 300 mm). The mounting is carried out with PP M6x12 (8x) connection bolts and PP M6 (8x) flange nuts.
| Material | Stainless steel |
| Colour | Other |
| Model | Integrated connector |
| Surface protection | Other |
| Stainless steel, pickled | NO |
| Suitable for circuit integrity | No |
| Wide span model | Yes |
| Cable tray height | 100 mm |
| Construction type | Reducing symmetrical |
| Material quality | Stainless steel |
