PKP-FS 60 | Experts for protection from lightning, cable and solar solutions

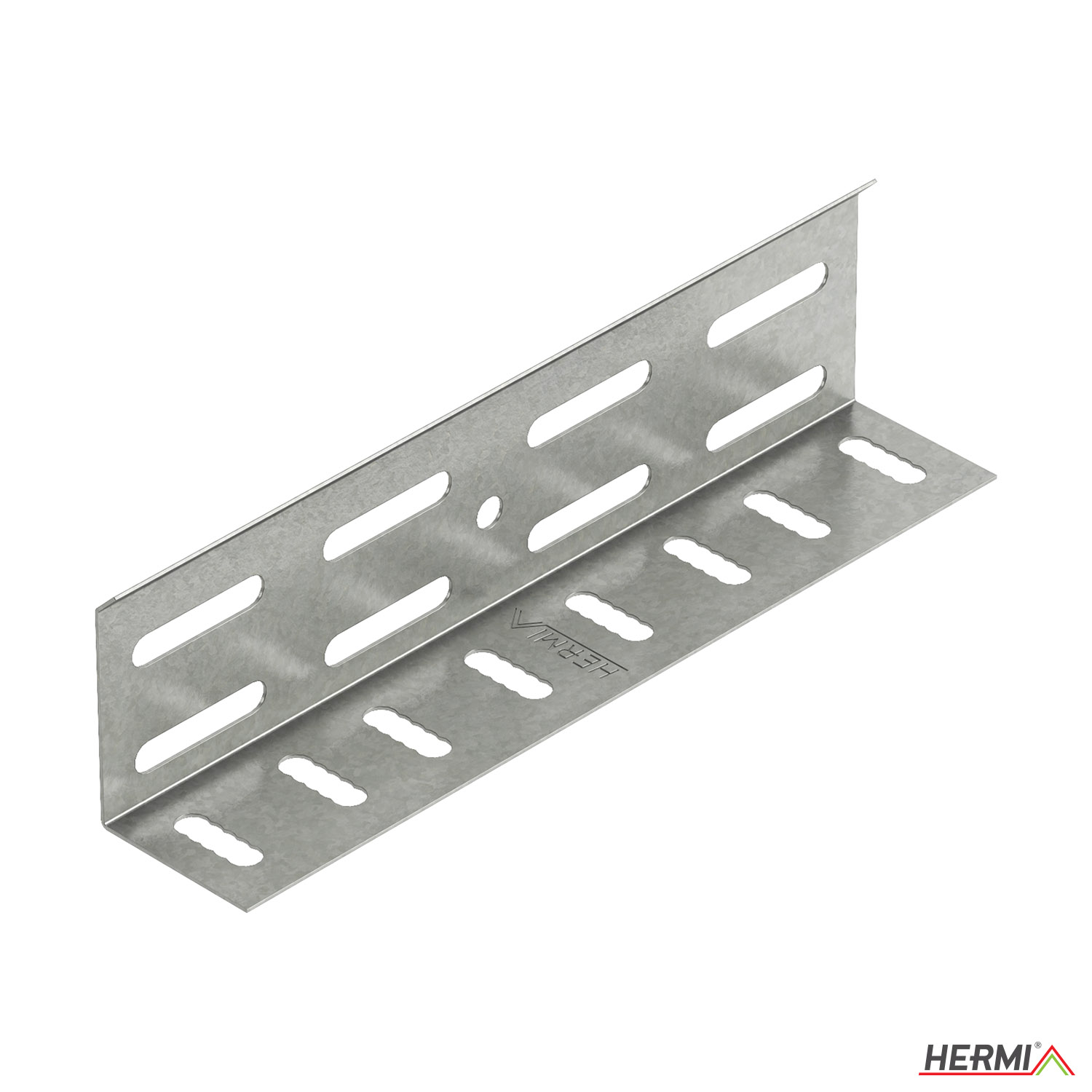

PKP-FS 60 fixed connector Mgs

Code: 88757502

Code: 88757502

The mounting is carried out with PP M6x12 (8x) connection bolts and PP M6 (8x) flange nuts.

LEGEND

MATERIAL

	LABEL	MATERIAL
	Rf	stainless steel
	Rf*H4	acid-resistant stainless steel
	Cu	copper
	Al	aluminium
	Fe	steel
	FeZn	galvanized steel
	FeZn-H	hot-dip galvanized sheet metal
	KFe	polypropylen
	FeCu	copper coated steel
	Me	brass
	PE	polyetilen - UV resistant
	N	nylon – UV resistant
	P-SV	polyester with UV resistant glass fibres
	pvc	electrostatic plastic-coated
	PVC	resistant synthetic material
	Wood	wood
	Concrete	concrete
	Ltž	cast iron
	CuSn	tinned copper
	PP	polypropylen

CONDUCTOR DIMENSIONS

(appropriateness of holders for a certain profile of conductors)

LABEL	DESCRIPTION
Φ	round cross-section conductor
P	rectangular cross-section conductor

CONDUCTOR ATTACHMENT ON FASTENER

LABEL	DESCRIPTION
N	attachment with nylon attachment elements
PE	attachment with polyetilen attachment elements
K	click attachment system
V	screw attachment
*	upon request

Labels legend

Become our partner

Our customers have access to more than 30.000 products

The mounting is carried out with PP M6x12 (8x) connection bolts and PP M6 (8x) flange nuts.

Material	Steel
Colour	Other
Model	Longitudinal joint
Surface protection	Continuously galvanized
Stainless steel, pickled	False
Suitable for circuit integrity	False
Type of connection	Screw connector
Material quality	Other
Suitable for cable management system width	50-600 mm
Suitable for cable management system height	60 mm

There are currently no files available in your language
