PKL-FSV 100 fixed connector Rf

Code: 88712376

PKL-FSV 100 fixed connector Rf

Code: 88712376

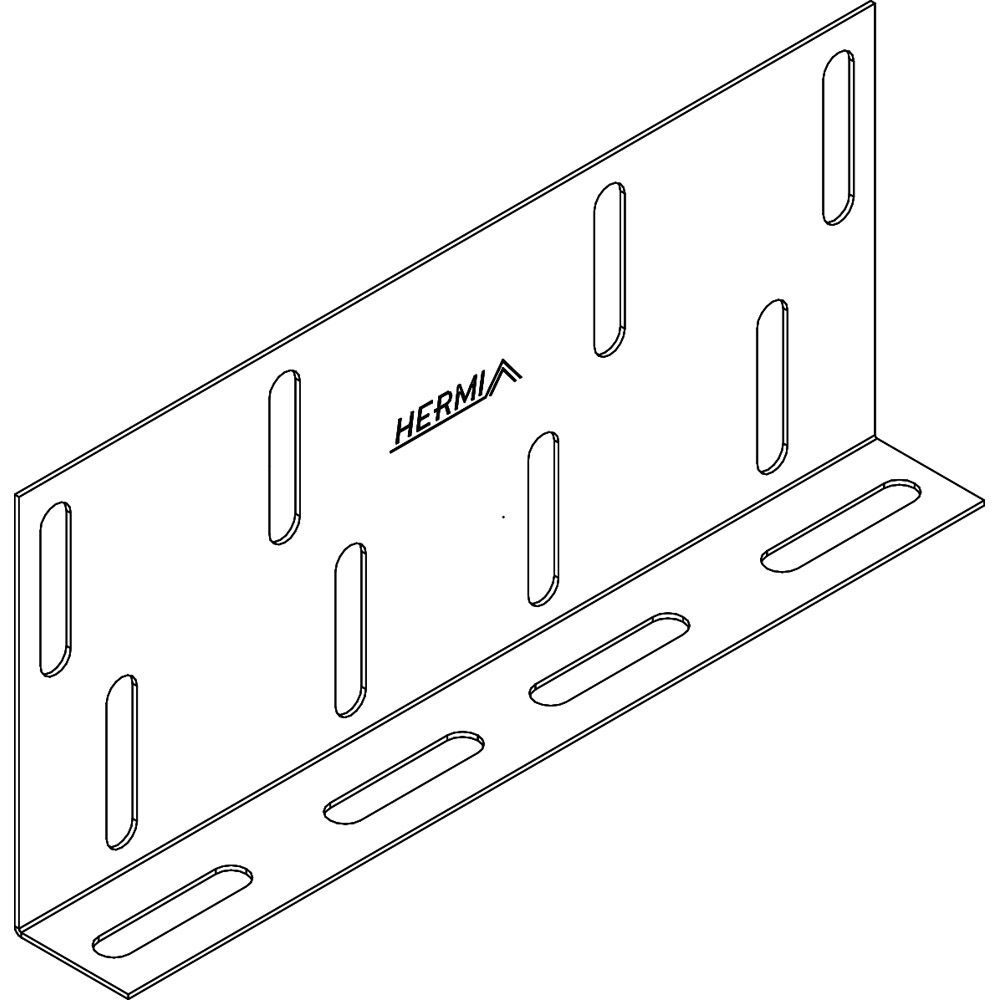

The PKL-FSV fixed connection is designed to connect KL cable ladders between themselves and to the PKL-RED, PKL-KO, PKL-KR connecting elements. The PKL-FSV fixed connection is installed on the outer side with PPKP M6x12 (8x) connection bolts and PPKP M6 (8x) flange nuts. To connect two ladders, 2x PKL-FS are required.
Weight: 0.14

TECHNICAL DATA AND STANDARDS

LEGEND

MATERIAL


LABEL
MATERIAL
Rf
stainless steel
Rf*H4
acid-resistant stainless steel
Cu
copper
Al
aluminium
Fe
steel
FeZn
galvanized steel
FeZn-H
hot-dip galvanized sheet metal
KFe
polypropylen
FeCu
copper coated steel
Me
brass
PE
polyetilen - UV resistant
N
nylon – UV resistant
P-SV
polyester with UV resistant glass fibres
pvc
electrostatic plastic-coated
PVC
resistant synthetic material
Wood
wood
Concrete
concrete
Ltž
cast iron
CuSn
tinned copper
PP
polypropylen

CONDUCTOR DIMENSIONS

(appropriateness of holders for a certain profile of conductors)

LABEL
DESCRIPTION
Φ

round cross-section conductor

P

rectangular cross-section conductor


CONDUCTOR ATTACHMENT ON FASTENER

LABEL

DESCRIPTION

N

attachment with nylon attachment elements

PE

attachment with polyetilen attachment elements

K
click attachment system
V
screw attachment
*
upon request
Labels legend
The PKL-FSV fixed connection is designed to connect KL cable ladders between themselves and to the PKL-RED, PKL-KO, PKL-KR connecting elements. The PKL-FSV fixed connection is installed on the outer side with PPKP M6x12 (8x) connection bolts and PPKP M6 (8x) flange nuts. To connect two ladders, 2x PKL-FS are required.
