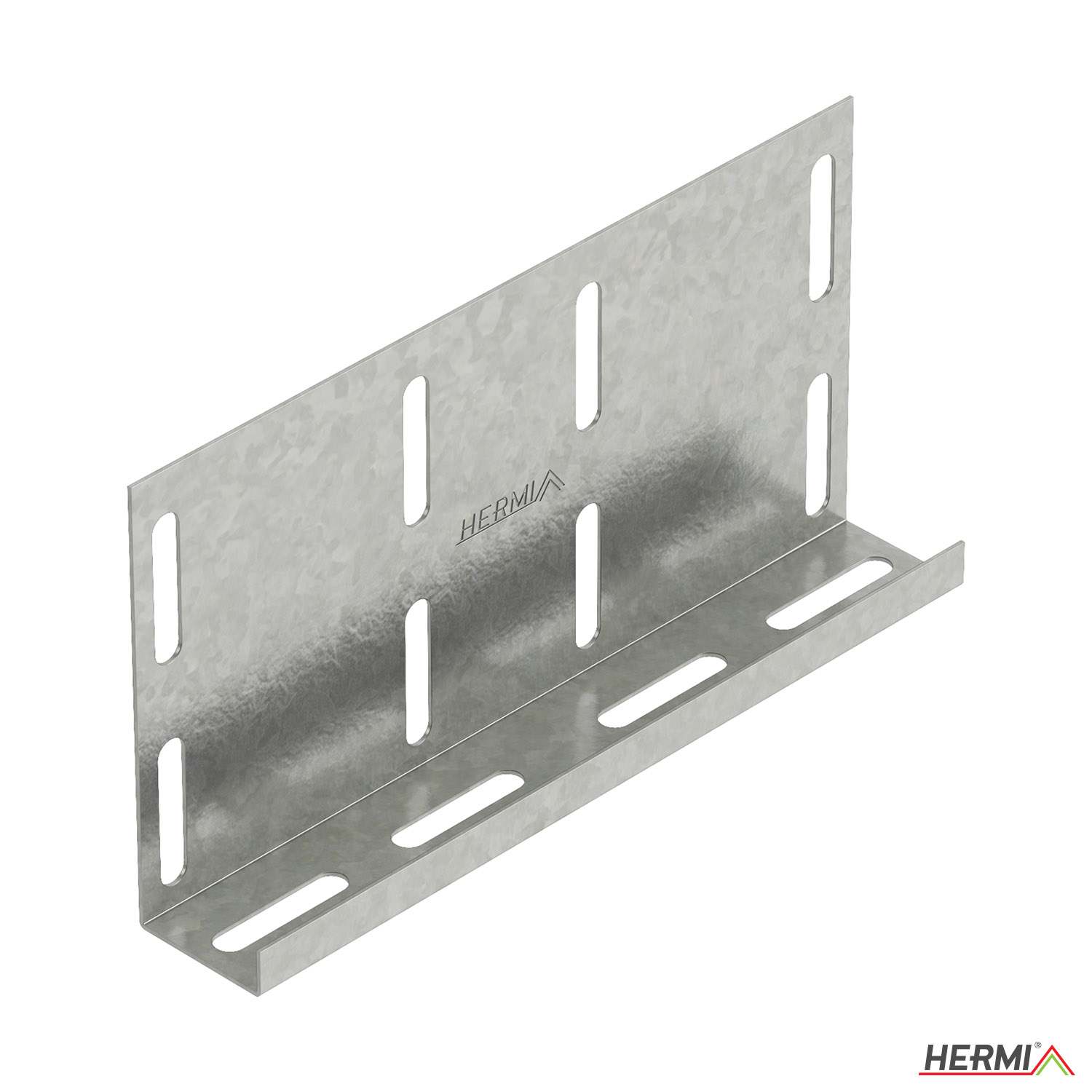

The PKL-FS fixed connection is designed to connect KL cable ladders between themselves and to the PKL-RED, PKL-KO, PKL-KR connecting elements. The PKL-FS fixed connection is installed on the outer side with PP M6x12 (8x) connection bolts and PP M6 (8x) flange nuts. To connect two cable ladders, 2 pcs of PKL-FS are required.
| Material | Steel |
| Length | 194 mm |
| Colour | Other |
| Model | Longitudinal joint |
| Surface protection | Continuously galvanized |
| Stainless steel, pickled | NO |
| Suitable for circuit integrity | No |
| Suitable for wire mesh tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Type of connection | Screw connector |
| Material quality | Other |
| Hinged joint horizontal | no |
| Hinged joint vertical | no, no |
| Suitable for cable management system width | 100-800 mm |
