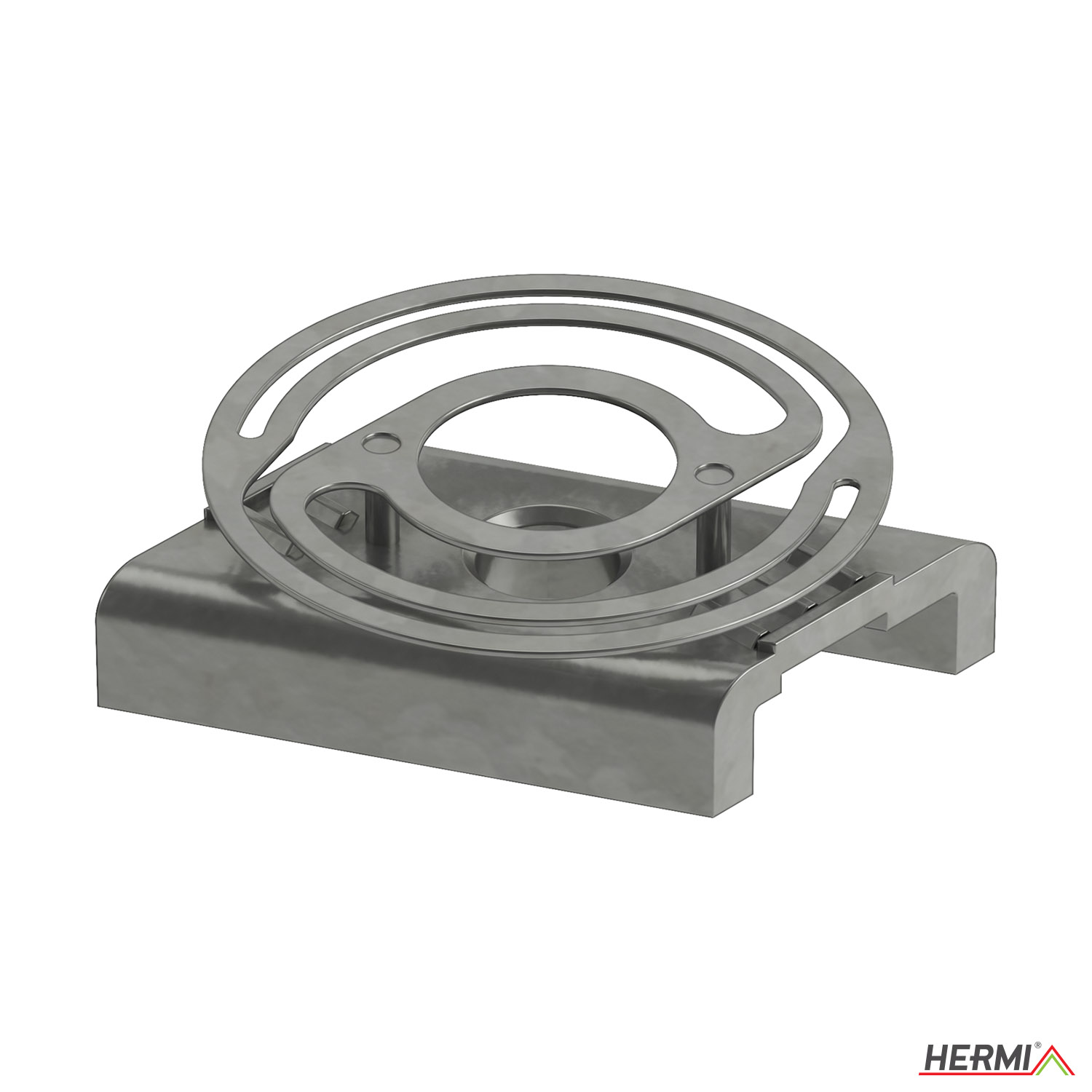

NKP-Speed Nut CC HZ41 M10 FeZn

Code: 88707245

NKP-Speed Nut CC HZ41 M10 FeZn

Code: 88707245

Particularly useful when installing in vertical channels or in places of difficult access. Suitable for all profiles of 41 mm width. Mounting by exerting slight centric pressure on it without using tools. No jamming when pushing. Possible combination with further system products. There is no settling behaviour after installation.
Weight: 0.03

TECHNICAL DATA AND STANDARDS

LEGEND

MATERIAL


LABEL
MATERIAL
Rf
stainless steel
Rf*H4
acid-resistant stainless steel
Cu
copper
Al
aluminium
Fe
steel
FeZn
galvanized steel
FeZn-H
hot-dip galvanized sheet metal
KFe
polypropylen
FeCu
copper coated steel
Me
brass
PE
polyetilen - UV resistant
N
nylon – UV resistant
P-SV
polyester with UV resistant glass fibres
pvc
electrostatic plastic-coated
PVC
resistant synthetic material
Wood
wood
Concrete
concrete
Ltž
cast iron
CuSn
tinned copper
PP
polypropylen

CONDUCTOR DIMENSIONS

(appropriateness of holders for a certain profile of conductors)

LABEL
DESCRIPTION
Φ

round cross-section conductor

P

rectangular cross-section conductor


CONDUCTOR ATTACHMENT ON FASTENER

LABEL

DESCRIPTION

N

attachment with nylon attachment elements

PE

attachment with polyetilen attachment elements

K
click attachment system
V
screw attachment
*
upon request
Labels legend
Particularly useful when installing in vertical channels or in places of difficult access. Suitable for all profiles of 41 mm width. Mounting by exerting slight centric pressure on it without using tools. No jamming when pushing. Possible combination with further system products. There is no settling behaviour after installation.
