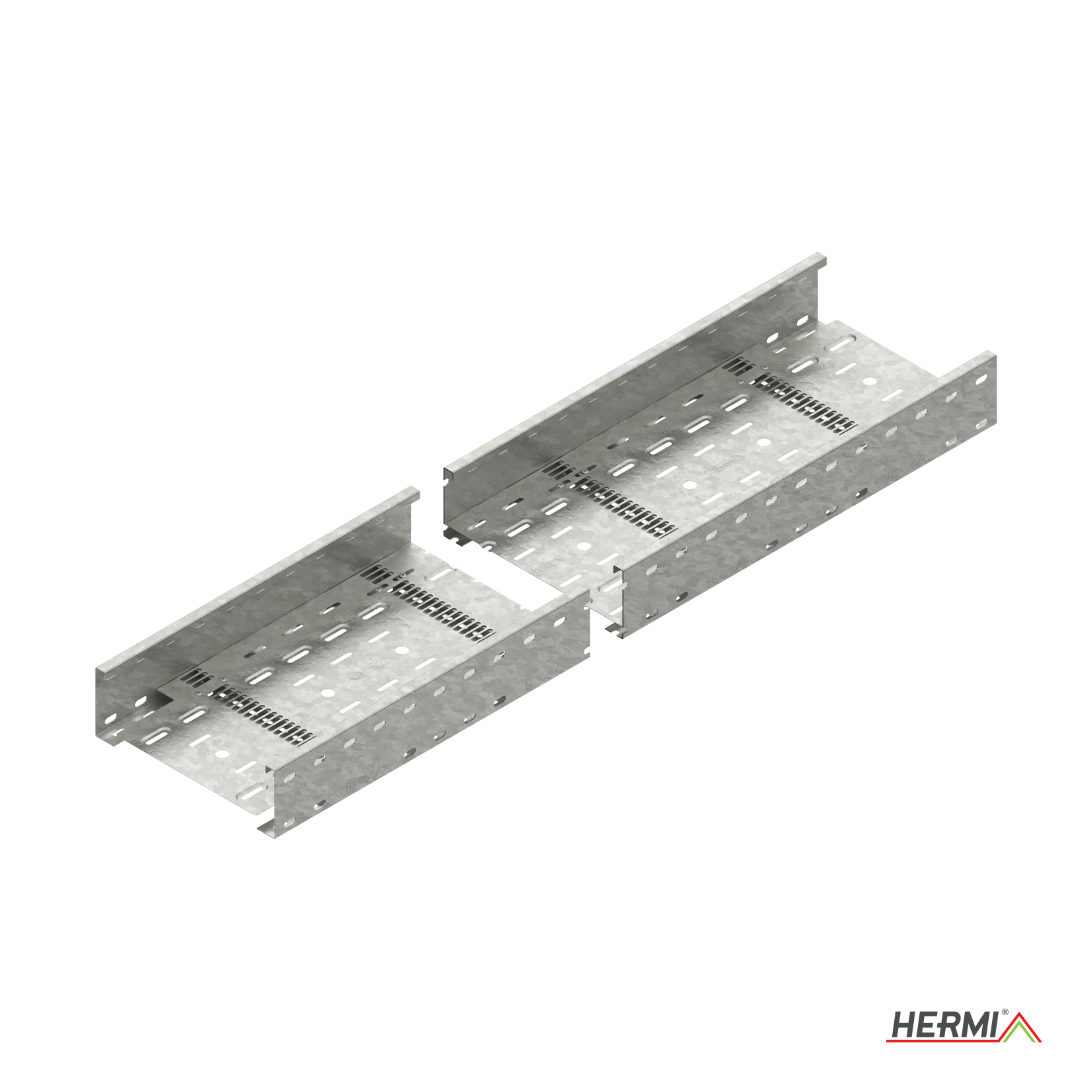

KPWS 100/500/6.0m cable tray FeZn; 1,5 mm

Code: 88720305

KPWS 100/500/6.0m cable tray FeZn; 1,5 mm

Code: 88720305

KPWS wide span cable trays, 100 mm in height, available in various widths, with a length of 6.0 m. Wide span cable trays are mounted to the wall, ceiling or floor using appropriate NKP brackets. To join two cable trays, 2 pcs of PKL-FS HD are required.

TECHNICAL DATA AND STANDARDS

LEGEND

MATERIAL
LABEL
MATERIAL
Rf
stainless steel
Rf*H4
acid-resistant stainless steel
Cu
copper
Al
aluminium
Fe
steel
FeZn
galvanized steel
FeZn-H
hot-dip galvanized sheet metal
KFe
polypropylen
FeCu
copper coated steel
Me
brass
PE
polyetilen - UV resistant
N
nylon – UV resistant
P-SV
polyester with UV resistant glass fibres
pvc
electrostatic plastic-coated
PVC
resistant synthetic material
Wood
wood
Concrete
concrete
Ltž
cast iron
CuSn
tinned copper
PP
polypropylen

CONDUCTOR DIMENSIONS

(appropriateness of holders for a certain profile of conductors)

LABEL
DESCRIPTION
Φ

round cross-section conductor
P

rectangular cross-section conductor


CONDUCTOR ATTACHMENT ON FASTENER

LABEL

DESCRIPTION
N

attachment with nylon attachment elements
PE

attachment with polyetilen attachment elements
K
click attachment system
V
screw attachment
*
upon request
Labels legend
Contact us
KPWS wide span cable trays, 100 mm in height, available in various widths, with a length of 6.0 m. Wide span cable trays are mounted to the wall, ceiling or floor using appropriate NKP brackets. To join two cable trays, 2 pcs of PKL-FS HD are required.
