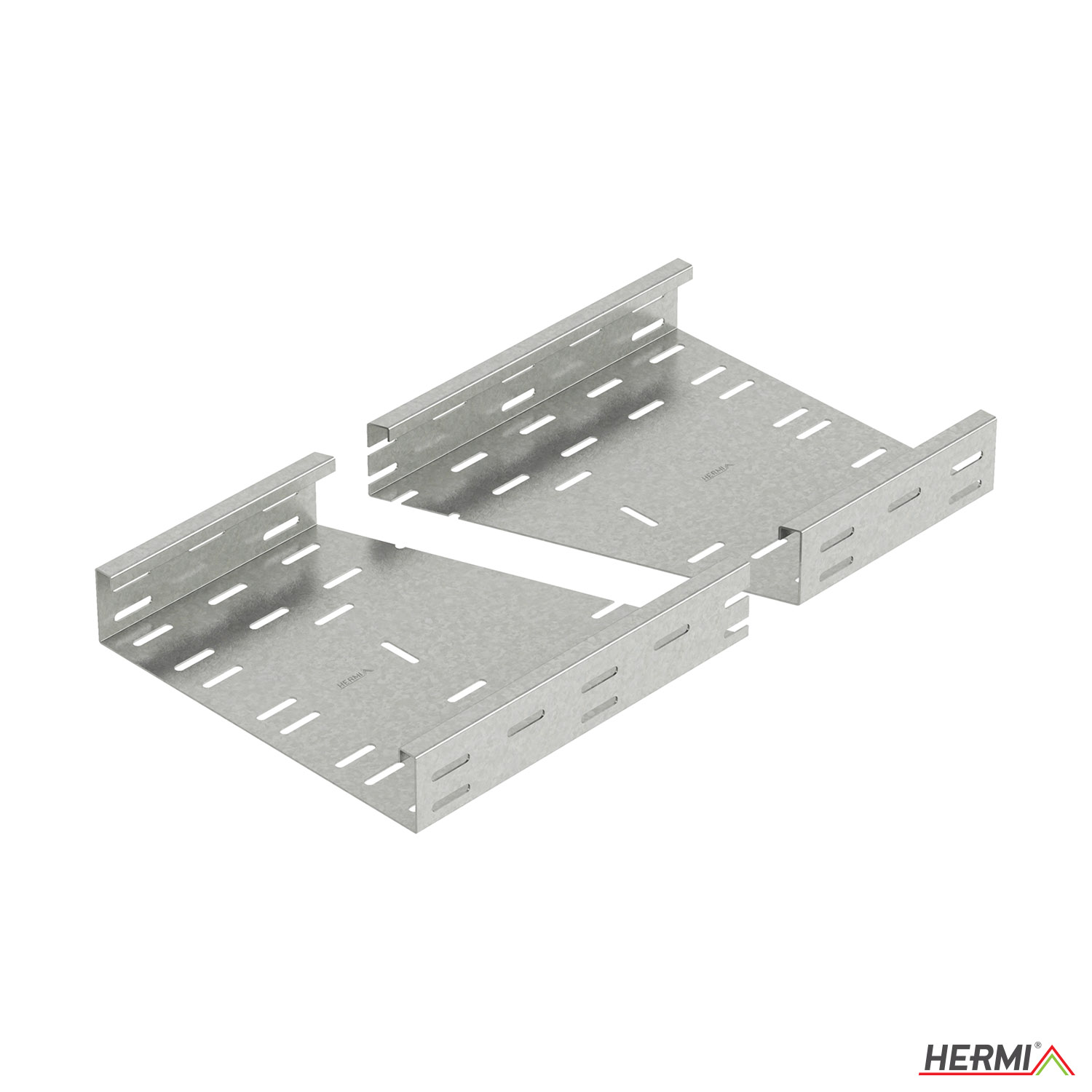

Cable trays of 60 mm in height and of various widths, made of galvanised sheet metal or stainless steel, optionally powder painted in the desired colour. The length of an individual cable tray is 3,0 m. Cable trays are mounted to the wall or ceiling with the appropriate NKP brackets.
Material | Steel |
Length | 3000 mm |
Colour | None |
Model | Integrated connector |
Height | 60 mm |
Surface protection | Hot-dip galvanized |
Material thickness | 1,5 mm, 1,5 mm |
Mounting perforation in bottom | YES |
Useful cross section | 23980 mm² |
Stainless steel, pickled | NO |
NATO-mounting holes | NO |
Side wall perforation | YES |
Material quality | Other |
With cover | NO |
