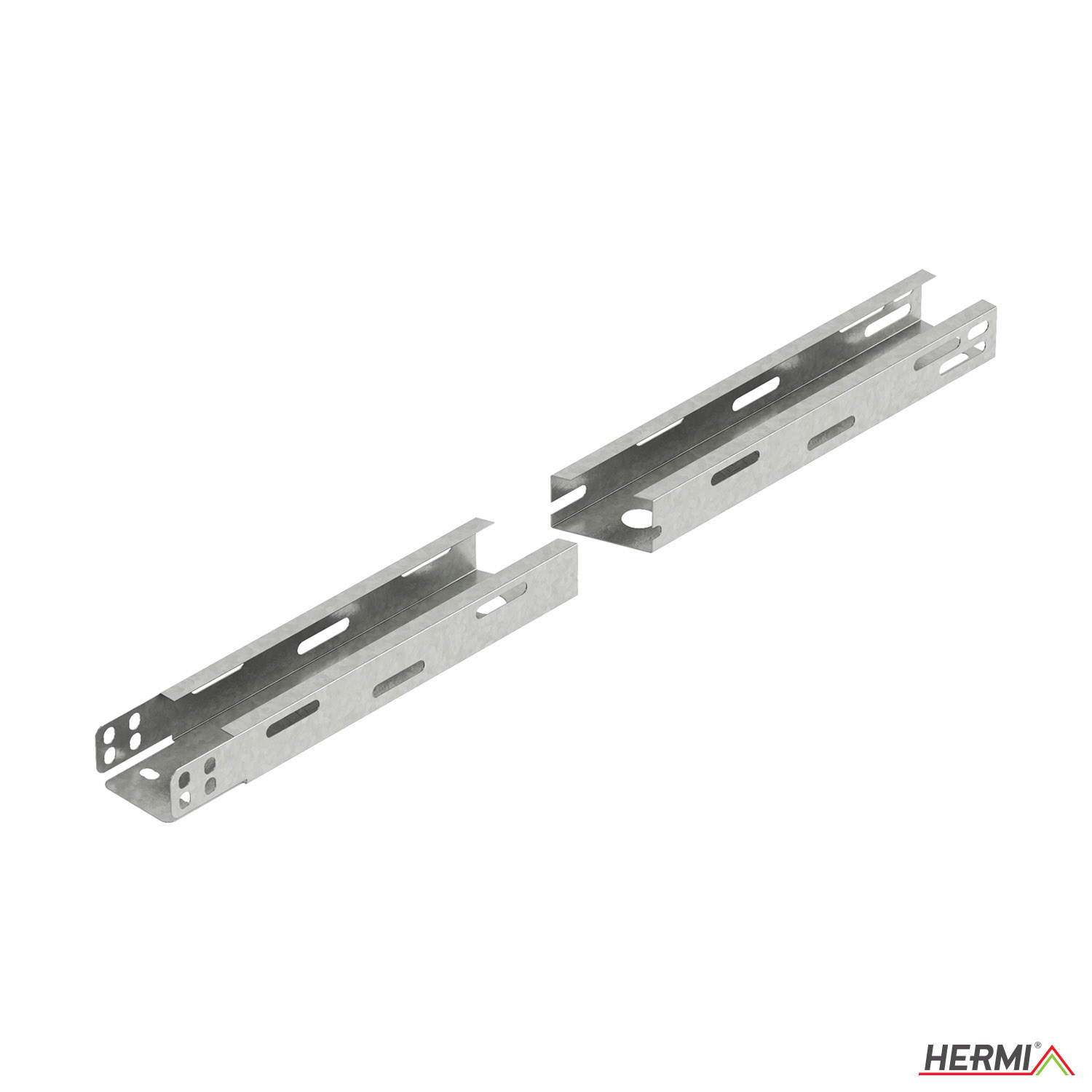

Cable trays with an edge of 30 mm in height and 50 mm in width, made of galvanised sheet metal or stainless steel, optionally powder painted in the desired colour. The length of an individual cable tray is 2,0 m. Other lengths upon request. Cable trays are mounted to the wall or ceiling with the appropriate NKP brackets. Joining cable trays together without additional fixing elements is carried out with PPKP M6x12 (4x–8x) connection bolts and PPKP M6 (4x–8x) flange nuts. Mounting with the NKP-VN2M8 50 hanging bracket and the M8 threaded rod is most suitable. Appropriate for lightweight loads, e.g. for marking parking spaces in parking garages.
Material | Steel |
Length | 2000 mm |
Colour | None |
Model | Integrated connector |
Height | 30 mm |
Surface protection | Galvanic/electrolytic zinc plated |
Material thickness | 0,6 mm, 0,6 mm |
Mounting perforation in bottom | YES |
Useful cross section | 1480 mm² |
Stainless steel, pickled | NO |
NATO-mounting holes | NO |
Side wall perforation | YES |
Material quality | Other |
With cover | NO |
