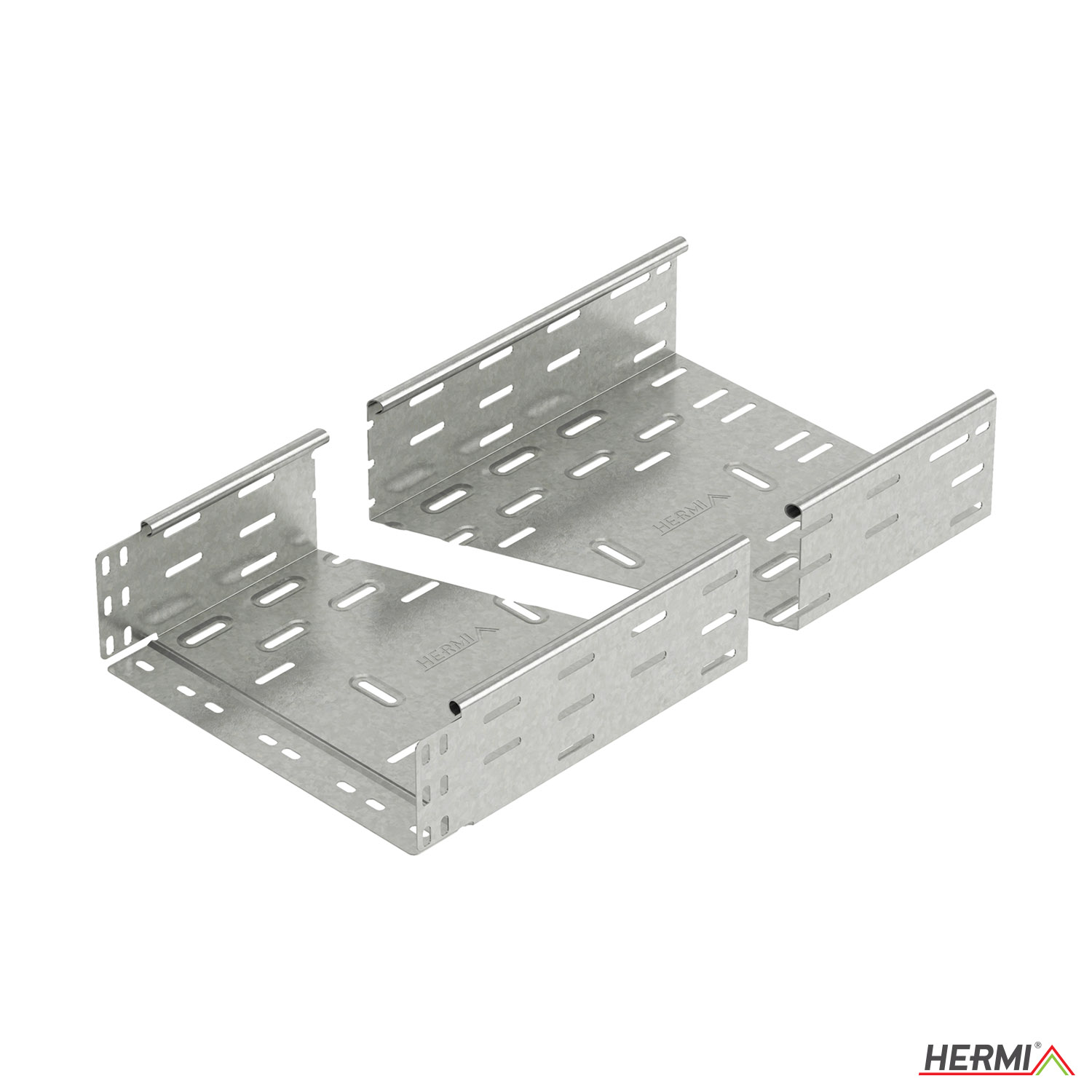

Cable trays, 100 mm in height, available in various widths, made of galvanised sheet metal or stainless steel, optionally powder painted in the desired colour. The length of an individual cable tray is 3.0 m. Cable trays are mounted to the wall or ceiling using appropriate NKP brackets. Joining cable trays together without additional fixing elements is carried out with PP M6x12 (4x–8x) connection bolts and PP M6 (4x–8x) flange nuts.
| Material | Steel |
| Length | 3000 mm |
| Colour | None |
| Model | Integrated connector |
| Height | 100 mm |
| Surface protection | Galvanic/electrolytic zinc plated |
| Material thickness | 1 mm, 1 mm |
| Mounting perforation in bottom | YES |
| Useful cross section | 9980 mm² |
| Stainless steel, pickled | NO |
| NATO-mounting holes | NO |
| Side wall perforation | YES |
| Material quality | Other |
| With cover | NO |
