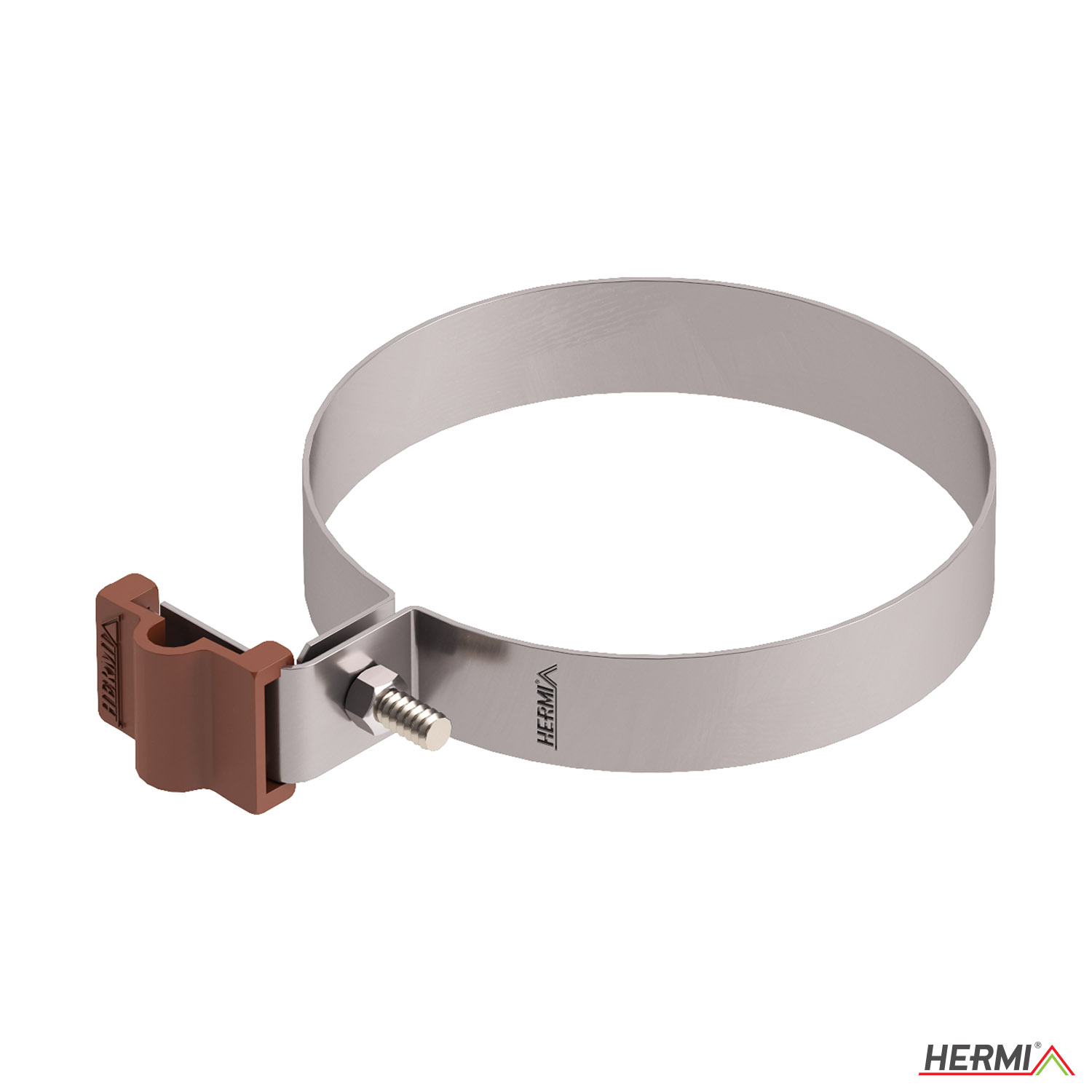

KON12 A fi 100 Rf-N 10 mm pipe bonding clamp

Code: 700454

KON12 A fi 100 Rf-N 10 mm pipe bonding clamp

Code: 700454

KON12 A pipe bonding fastener, made in one piece, designed for the attachment of round conductors to sink pipes of different dimensions; attachment without screwing (N - nylon holder).
Weight: 0.07

TECHNICAL DATA AND STANDARDS

LEGEND

MATERIAL


LABEL
MATERIAL
Rf
stainless steel
Rf*H4
acid-resistant stainless steel
Cu
copper
Al
aluminium
Fe
steel
FeZn
galvanized steel
FeZn-H
hot-dip galvanized sheet metal
KFe
polypropylen
FeCu
copper coated steel
Me
brass
PE
polyetilen - UV resistant
N
nylon – UV resistant
P-SV
polyester with UV resistant glass fibres
pvc
electrostatic plastic-coated
PVC
resistant synthetic material
Wood
wood
Concrete
concrete
Ltž
cast iron
CuSn
tinned copper
PP
polypropylen

CONDUCTOR DIMENSIONS

(appropriateness of holders for a certain profile of conductors)

LABEL
DESCRIPTION
Φ

round cross-section conductor

P

rectangular cross-section conductor


CONDUCTOR ATTACHMENT ON FASTENER

LABEL

DESCRIPTION

N

attachment with nylon attachment elements

PE

attachment with polyetilen attachment elements

K
click attachment system
V
screw attachment
*
upon request
Labels legend
KON12 A pipe bonding fastener, made in one piece, designed for the attachment of round conductors to sink pipes of different dimensions; attachment without screwing (N - nylon holder).
Mounting type conductor With grip clamp
Material of holder Stainless steel V2A
Material of carrier Other
Suitable for diameter round conductor 10 mm
Material base Stainless steel V2A
Pipe chucking range 100 mm
700454_KON12_A_TECHNICAL_DATA_SHEET.pdf
ISO9001_&_ISO14001_en.pdf
