KON10 fi 10X10 Rf-V to 30mm Pipe bonding clamp

Code: 90806

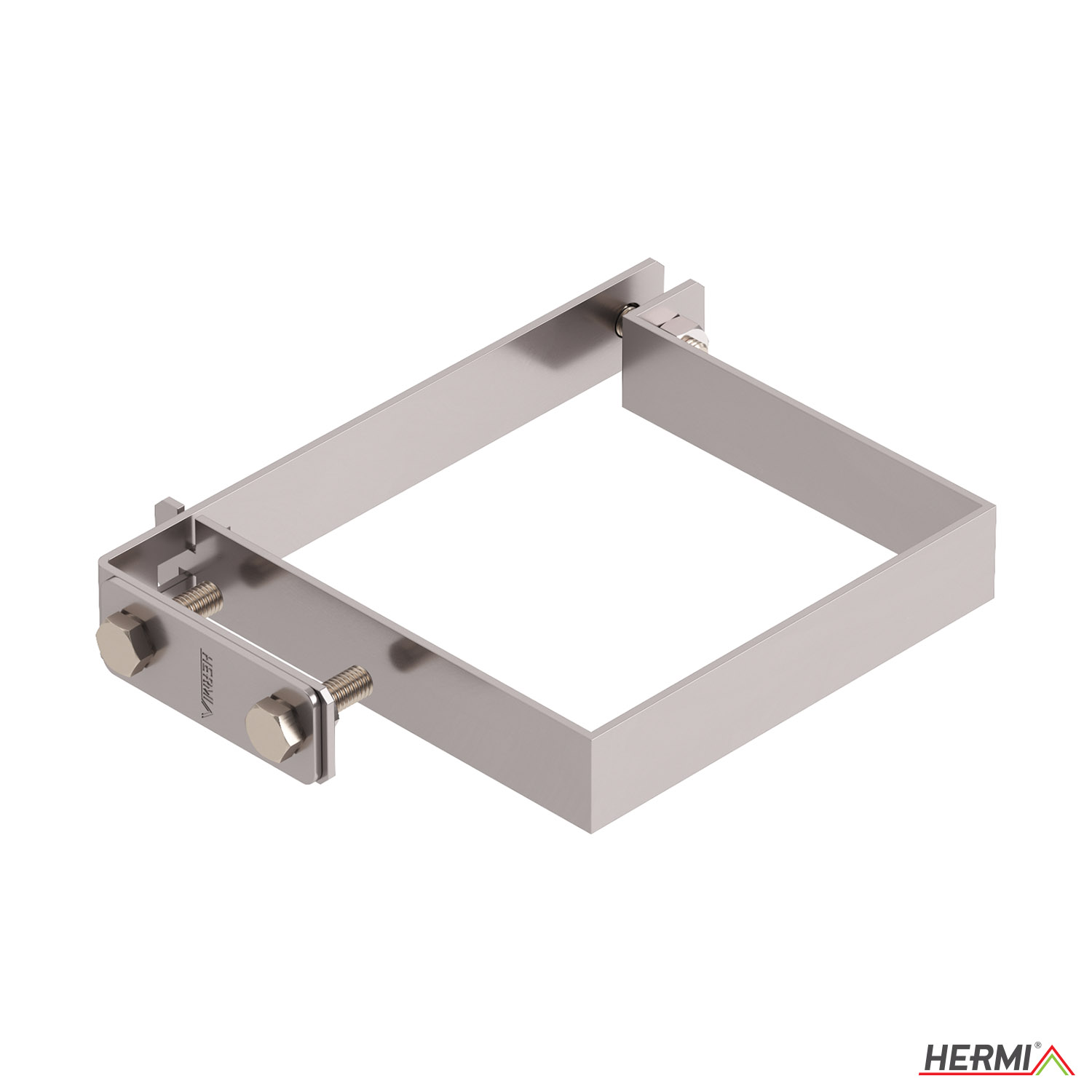

KON10 fi 10X10 Rf-V to 30mm Pipe bonding clamp

Code: 90806

KON10 pipe bonding clamps, consisting of two parts, designed for grounding of square sink pipes and attaching a rolled steel earthing conductor to sink pipes of different dimensions. The conductor is screwed to the pipe bonding clamp.

TECHNICAL DATA AND STANDARDS

LEGEND

MATERIAL

	LABEL	MATERIAL
	Rf	stainless steel
	Rf*H4	acid-resistant stainless steel
	Cu	copper
	Al	aluminium
	Fe	steel
	FeZn	galvanized steel
	FeZn-H	hot-dip galvanized sheet metal
	KFe	polypropylen
	FeCu	copper coated steel
	Me	brass
	PE	polyetilen - UV resistant
	N	nylon – UV resistant
	P-SV	polyester with UV resistant glass fibres
	pvc	electrostatic plastic-coated
	PVC	resistant synthetic material
	Wood	wood
	Concrete	concrete
	Ltž	cast iron
	CuSn	tinned copper
	PP	polypropylen

CONDUCTOR DIMENSIONS

(appropriateness of holders for a certain profile of conductors)

LABEL	DESCRIPTION
Φ	round cross-section conductor
P	rectangular cross-section conductor

CONDUCTOR ATTACHMENT ON FASTENER

LABEL	DESCRIPTION
N	attachment with nylon attachment elements
PE	attachment with polyetilen attachment elements
K	click attachment system
V	screw attachment
*	upon request

Labels legend

Become our partner

Our customers have access to more than 30.000 products

Mounting type conductor	With screw clamp
Material of holder	Stainless steel V2A
Material of carrier	Stainless steel V2A
Suitable for diameter round conductor	30 mm
Pipe chucking range	100x100 mm

90806_KON10_TECHNICAL_DATA_SHEET.pdf

ISO9001_&_ISO14001_en.pdf
