KON04 D SIMPLE 40x40 FeZn-H 8-10 mm - M10x35

Code: 50521

KON04 D SIMPLE 40x40 FeZn-H 8-10 mm - M10x35

Code: 50521

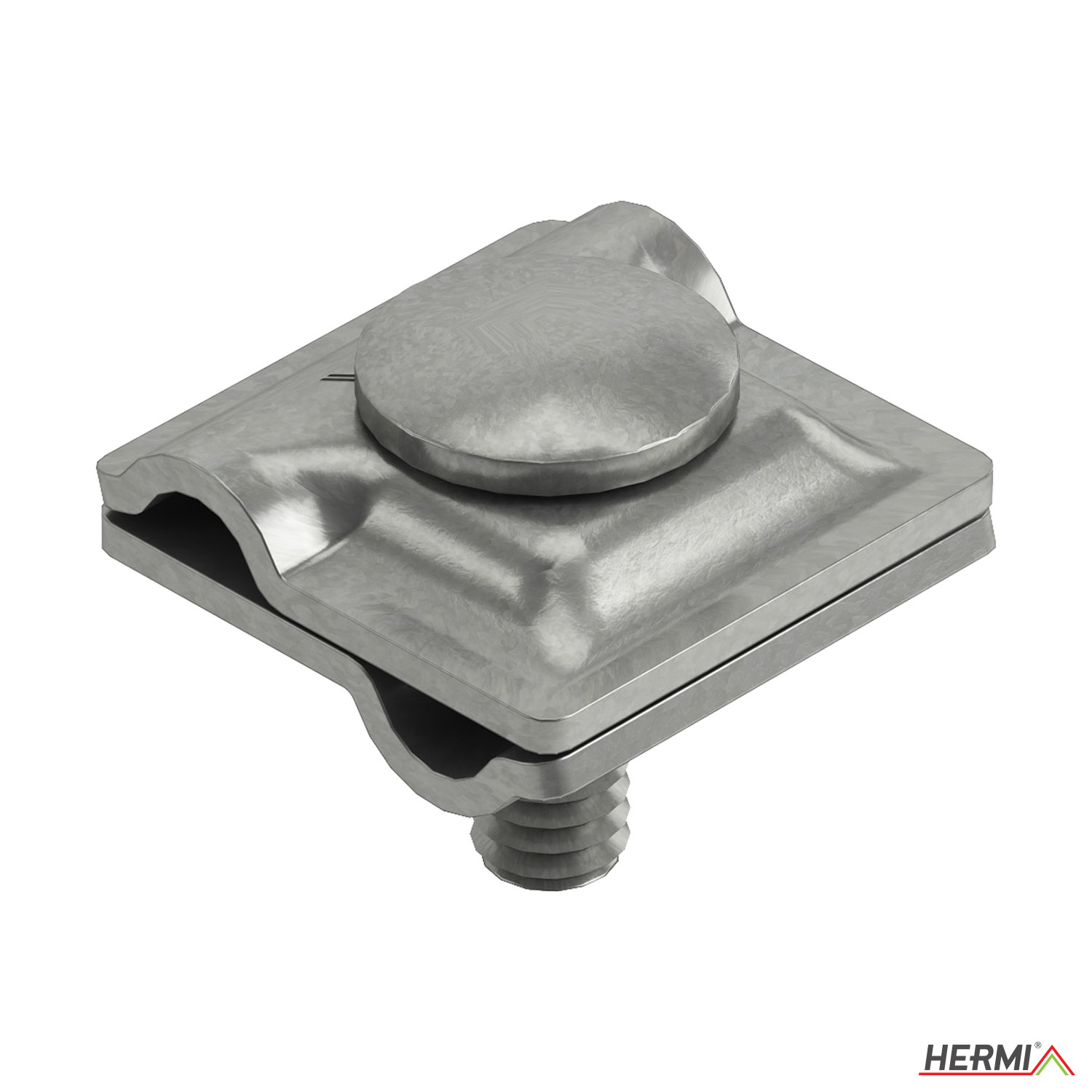

Bonding clamp, consisting of 2 plates 40 mm x 40 mm, M10 bolt and M10 nut, designed for carrying out joints between round conductors Φ8 – Φ10 mm and metal parts.
Weight: 0.11

TECHNICAL DATA AND STANDARDS

LEGEND

MATERIAL


LABEL
MATERIAL
Rf
stainless steel
Rf*H4
acid-resistant stainless steel
Cu
copper
Al
aluminium
Fe
steel
FeZn
galvanized steel
FeZn-H
hot-dip galvanized sheet metal
KFe
polypropylen
FeCu
copper coated steel
Me
brass
PE
polyetilen - UV resistant
N
nylon – UV resistant
P-SV
polyester with UV resistant glass fibres
pvc
electrostatic plastic-coated
PVC
resistant synthetic material
Wood
wood
Concrete
concrete
Ltž
cast iron
CuSn
tinned copper
PP
polypropylen

CONDUCTOR DIMENSIONS

(appropriateness of holders for a certain profile of conductors)

LABEL
DESCRIPTION
Φ

round cross-section conductor

P

rectangular cross-section conductor


CONDUCTOR ATTACHMENT ON FASTENER

LABEL

DESCRIPTION

N

attachment with nylon attachment elements

PE

attachment with polyetilen attachment elements

K
click attachment system
V
screw attachment
*
upon request
Labels legend
Bonding clamp, consisting of 2 plates 40 mm x 40 mm, M10 bolt and M10 nut, designed for carrying out joints between round conductors Φ8 – Φ10 mm and metal parts.
Material Steel
Surface protection Hot-dip galvanized
Type of connector Clamp connector
Type of fastening screws Flat round screw
Diameter round conductor 1 8-10 mm
Diameter round conductor 2 8-10 mm
50521_KON04_D_SIMPLE_TECHNICAL_DATA_SHEET.pdf
