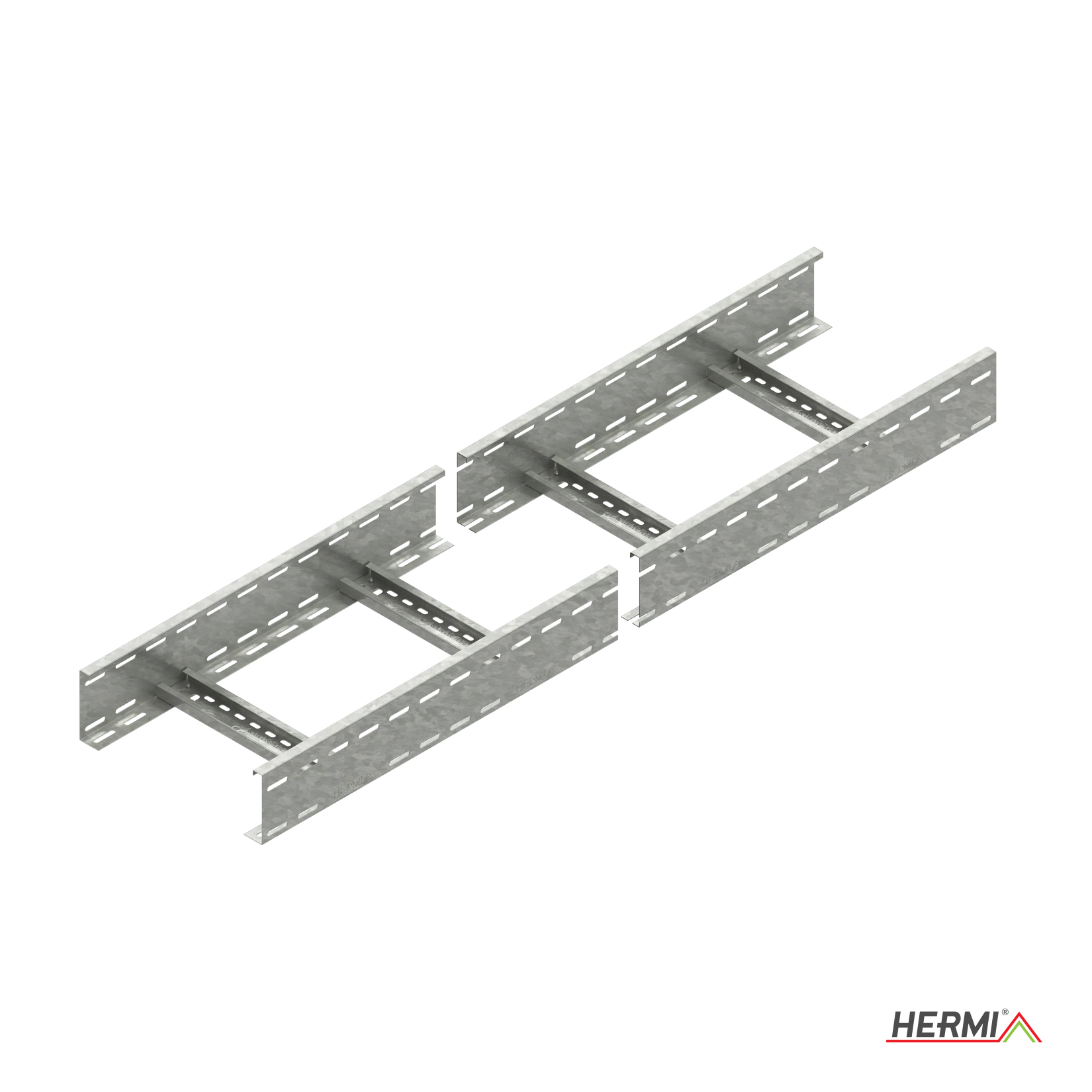

Cable ladders, 100 mm in height, available in various widths, made of galvanised sheet metal or stainless steel, optionally powder painted in the desired colour. The length of an individual cable ladder is 3.0 m. Cable ladders are attached to the wall, ceiling or floor with the suitable NKP brackets. To join two cable ladders, 2 pcs of PKL-FS are required.
| Material | Steel |
| Length | 3000 mm |
| Colour | Other |
| Height | 100 mm |
| Surface protection | Hot-dip galvanized |
| Useful cross section | 41830 mm² |
| Stainless steel, pickled | NO |
| Suitable for circuit integrity | No |
| Wide span model | NO |
| Width | 500 mm |
| Type of rung | Perforated profile |
| Material quality | Other |
| Type of side joist | Profile (open) |
| Rung centre spacing | 345 mm |
| Fixation rung | Blind rivetted |
