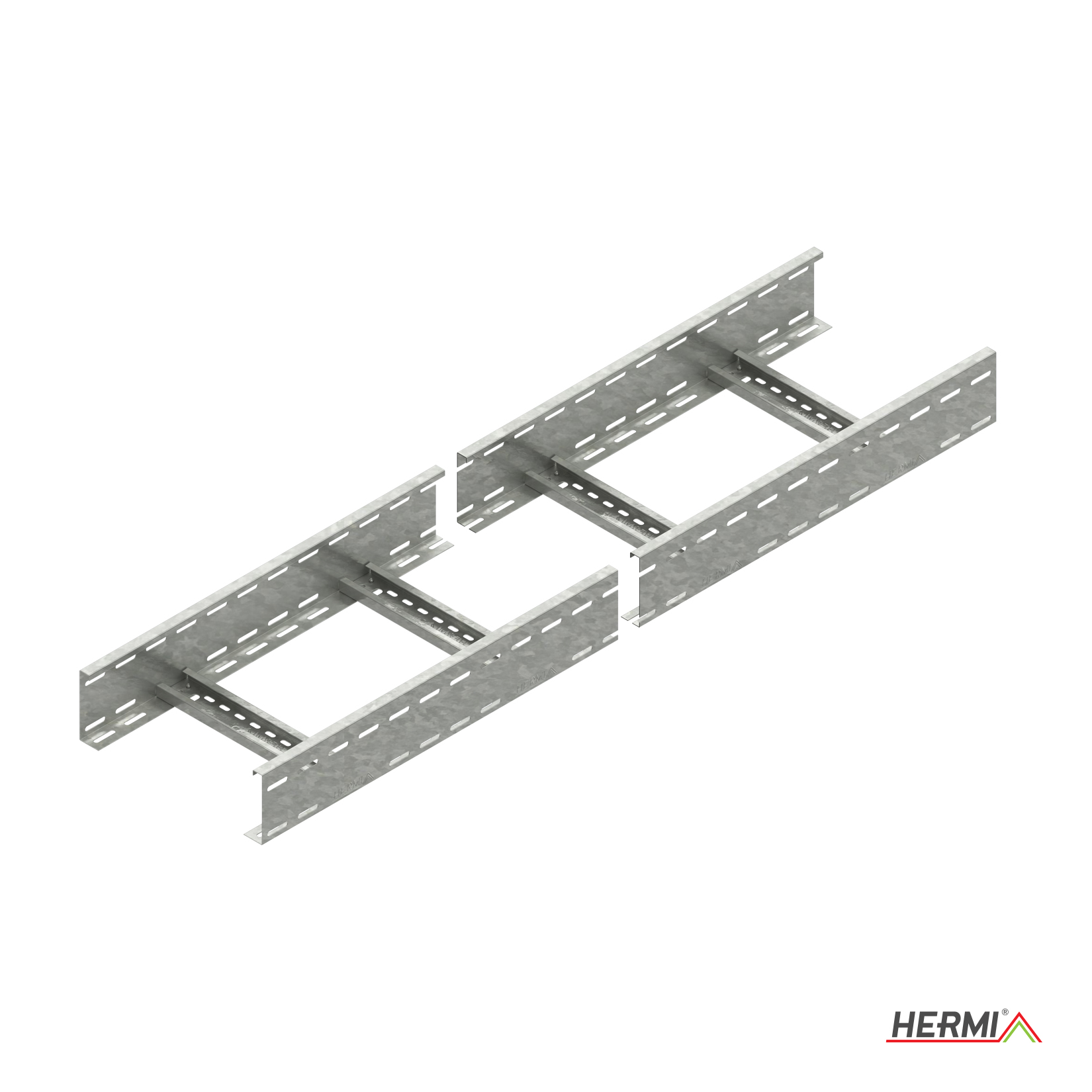

Cable ladders of 100 mm in height and of various widths, made of galvanised sheet metal or stainless steel, optionally powder painted in the desired colour. The length of an individual cable ladder is 3,0 m. Cable ladders are attached to the wall, ceiling or floor with the suitable NKP brackets. For joining two cable ladders, 2 pcs PKL-FS are required.
![Website name](https://hermi-solutions.com/storage/app/uploads/public/63b/e52/590/63be52590a7e4155060693.png)
![Website name](https://hermi-solutions.com/storage/app/uploads/public/608/12f/3f9/60812f3f9ba2d229352927.png)
Material | Steel |
Length | 3000 mm |
Colour | Other |
Height | 100 mm |
Surface protection | Hot-dip galvanized |
Useful cross section | 33430 mm² |
Stainless steel, pickled | NO |
Suitable for circuit integrity | No |
Wide span model | NO |
Width | 400 mm |
Side wall perforation | YES |
Type of side joist | Profile (open) |
Rung centre spacing | 345 mm |
Fixation rung | Blind rivetted |
